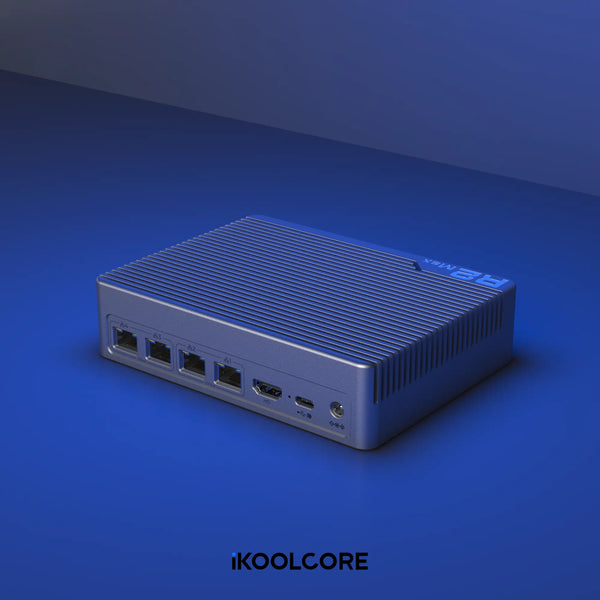

R2 Max - Next-Gen 10G Firewall Gateway Server

R2 Max - Next-Gen 10G Firewall Gateway Server

3 total reviews

Shipping calculated at checkout.
CPU Model
Memory(Single Slot, DDR5 SO-DIMM, 4800MHz)
Storage(NVMe 2242/2280)

The Next Batch of R2 Max is Scheduled to be Shipped out
in Late December.
Thanks for your patience


  • Processor: Intel Alder Lake-N N100, i3-N305 optional
  • Memory: 1 x SO-DIMM DDR5 4800MHz, support 8GB/16GB/32GB(SAMSUNG).
  • Ethernet Ports: 2 x Marvell AQC113C-B1-C 10Gbps Network cards(via PCIe 3.0 x 2), 2 x Intel i226-v 2.5G network cards (via PCIe 3.0 x 1)
    • AQC113C-B1-C is a 6-Speed Commercial Temperature Grade, RoHS 6/6* network chipset( Please note: The two AQC113C NICs are not recognized or natively supported by pfSense, OPNsense, and ESXi.)

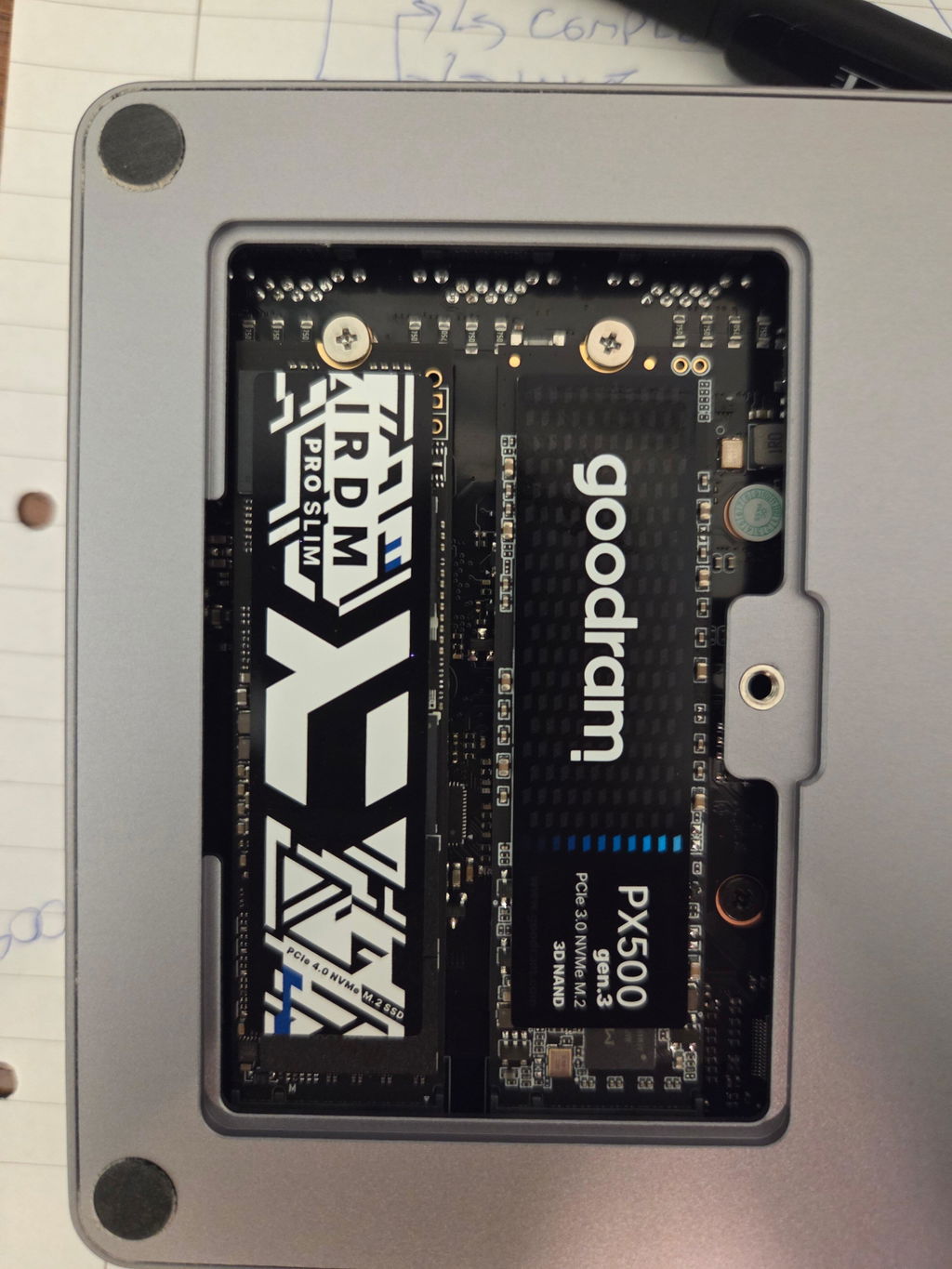

  • Storage: 2 x M.2 2242/2280 NVMe SSD, PCIe 2.0 x 1
  • USB Ports: 2 x USB-A 3.0(5Gbps), 1 x USB-C 3.2 Gen2(10Gbps)
  • Display: HDMI 2.0 and Type-C display output with 4K 60fps support
  • Cooling System: Full aluminum body passive cooling, dual 4010 fans active cooling for aluminum fins
  • System Compatibility: Compatible with Windows, Linux, pfSense, OPNsense, OpenWrt, Proxmox VE, VMware ESXi, Unraid and more
  • BIOS: AMI EFI BIOS with Auto Power-on, WOL, and PXE support
  • Power Supply: DC IN 12-19V

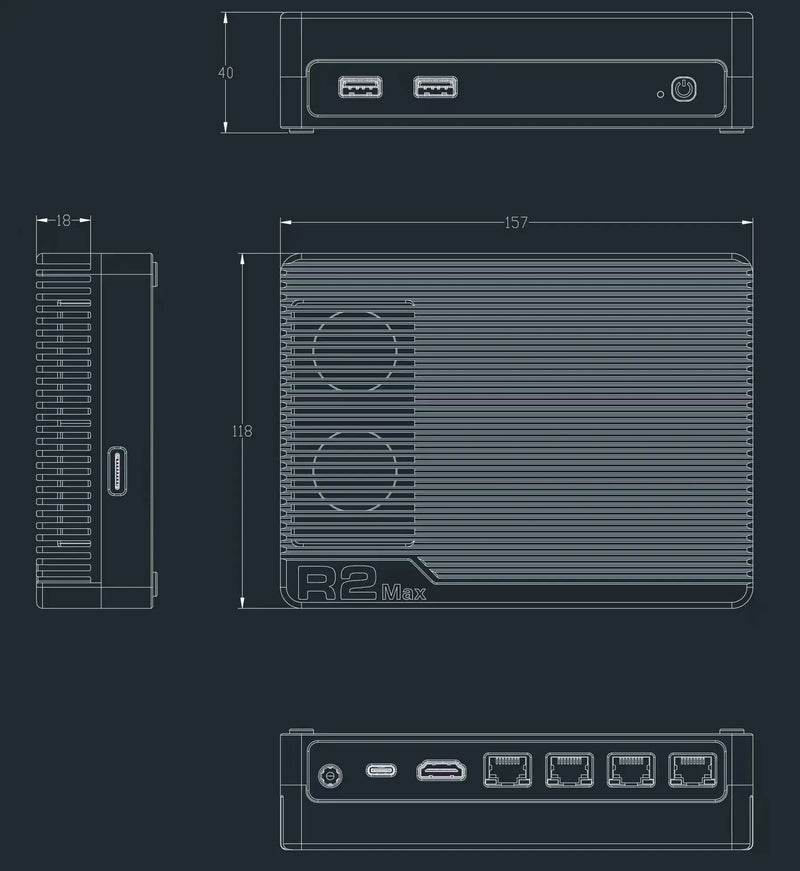

  • Dimensions: 157 x 118 x 40 mm
  • Weight: Main unit 1050g (1110g for Fanless Unit), packed about 1600g
  • More:

More Information AND FAQs, please visit wiki.ikoolcore.com.

If you need a FANLESS R2Max, leaving a NOTE when ordering.

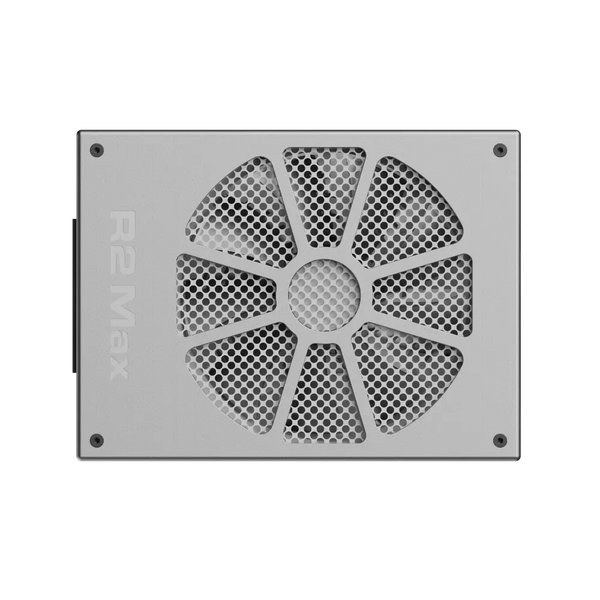

(If you've chosen the FANLESS R2Max, we highly recommend pairing it with our External Cooling Kit for the ultimate thermal performance.)

🔥We Recommend Seel's Worry-Free Purchase (Only available in limited countries and regions) when placing orders. This will help you avoid unexpected package delay, loss or demages issues.

ikoolcore_Green_Shipping_Protection

View full details

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)

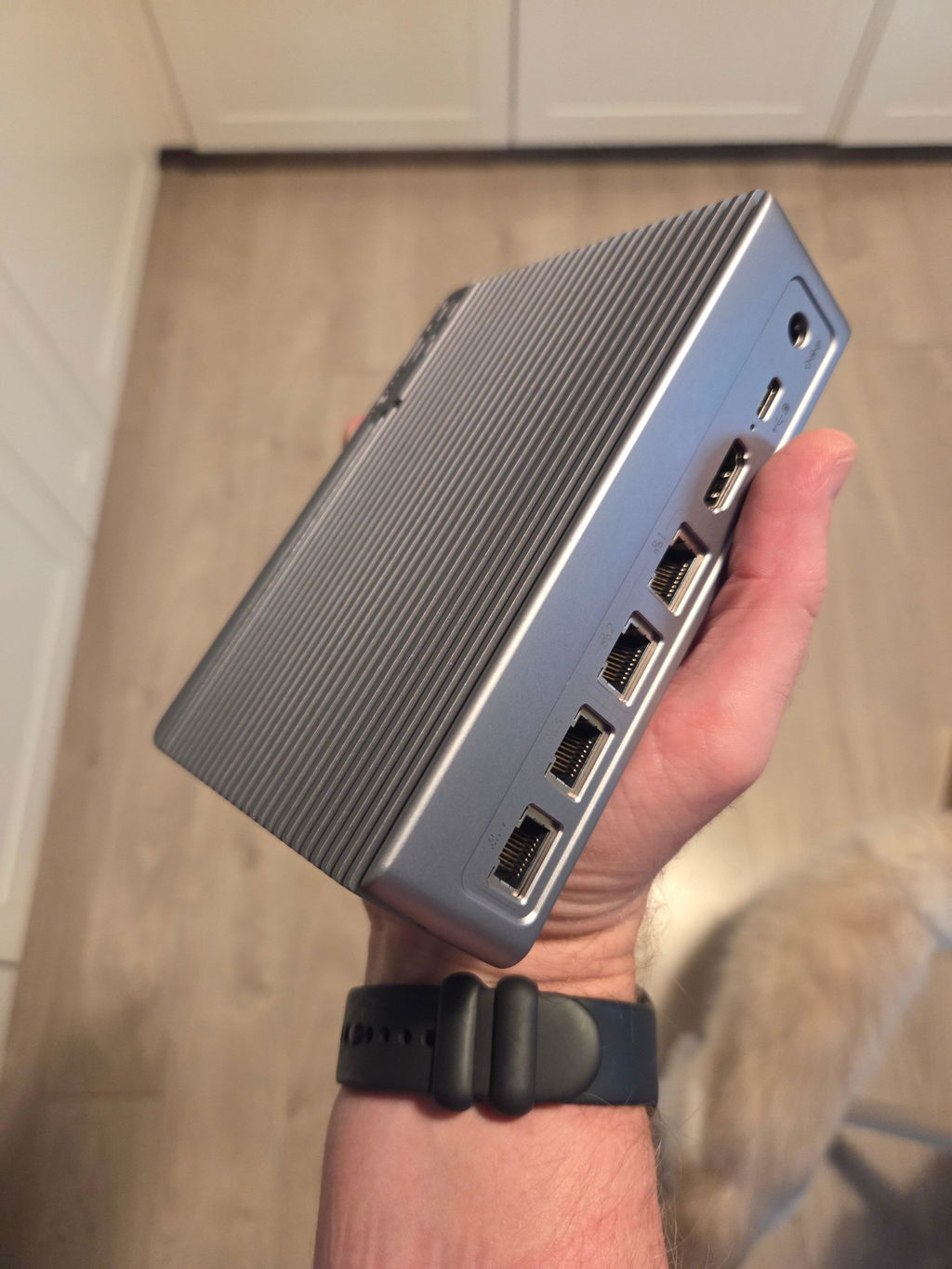

R
RK
Excellent product!

This is what I wanted for a long time.
It is important to have 10Gbase-T ports and not SFP ports.
Build quality is excellent and it is very affordable price.
iKOOLCORE really understands what users want for product like this.
Keep it up!

M
MatBic
Very nice unit - really good build quality.

This is a very good quality unit. Great cooling.

V
Vorn

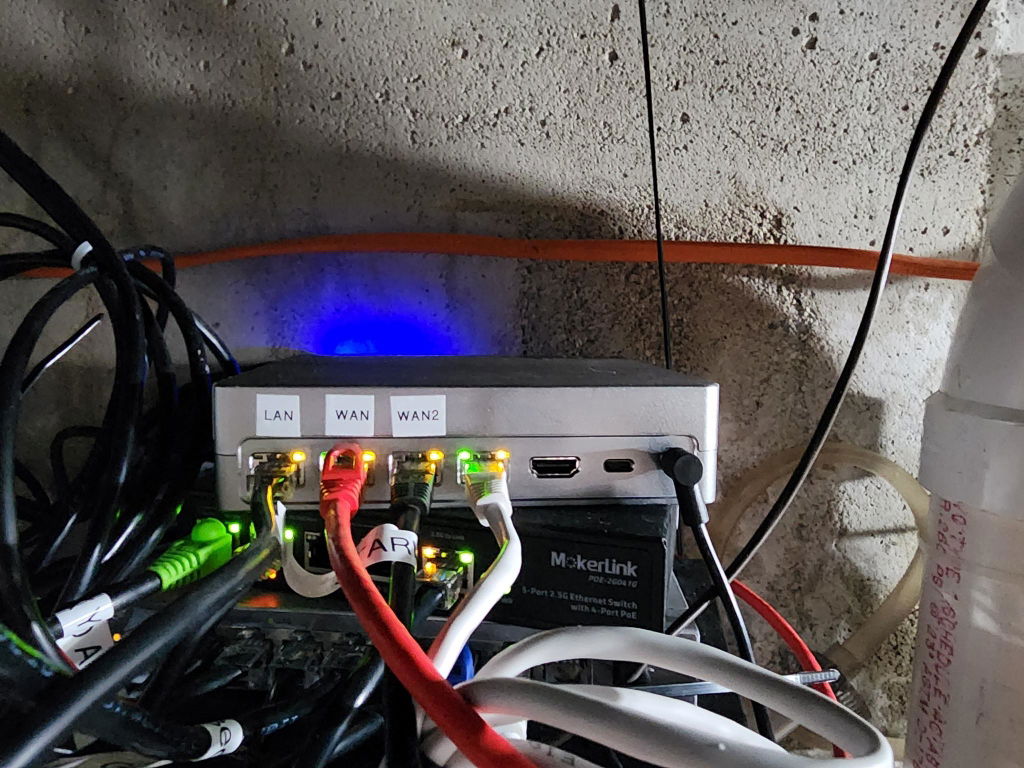

Router works well, but beware if using with OPNSense

I didn't realize this, but there isn't drivers for the 10GB ports on this router for OPNSense. It's because OPNSense runs on FreeBSD.

However, I was able to get OPNSense to work by running it under Proxmox as a VM. The throughput through various testing was only ~5gb over the 10gb ports and I think this is a limitation of the virtualized bridge.

I would give this 5 stars if OPNSense worked natively. But for now, it serves my needs as my WAN connection is only 2gb. I bought this (instead of a 2.5gb router) for future proofing.

Thank you for your feedback! You’re correct that OPNSense and pfSense are based on FreeBSD, which currently lacks native driver support for the AQC113C-B1-C chipset, and unfortunately, this is something beyond our control. We hope that pfSense and OPNSense will soon release driver updates for the AQC113C-B1-C NIC.

If you’re open to using OpenWRT, we have compiled a custom firmware with the necessary drivers, which can be downloaded from dl.ikoolcore.com. With this setup, the router will be able to fully utilize the 10Gbps bandwidth without any issues.
