iKOOLCORE

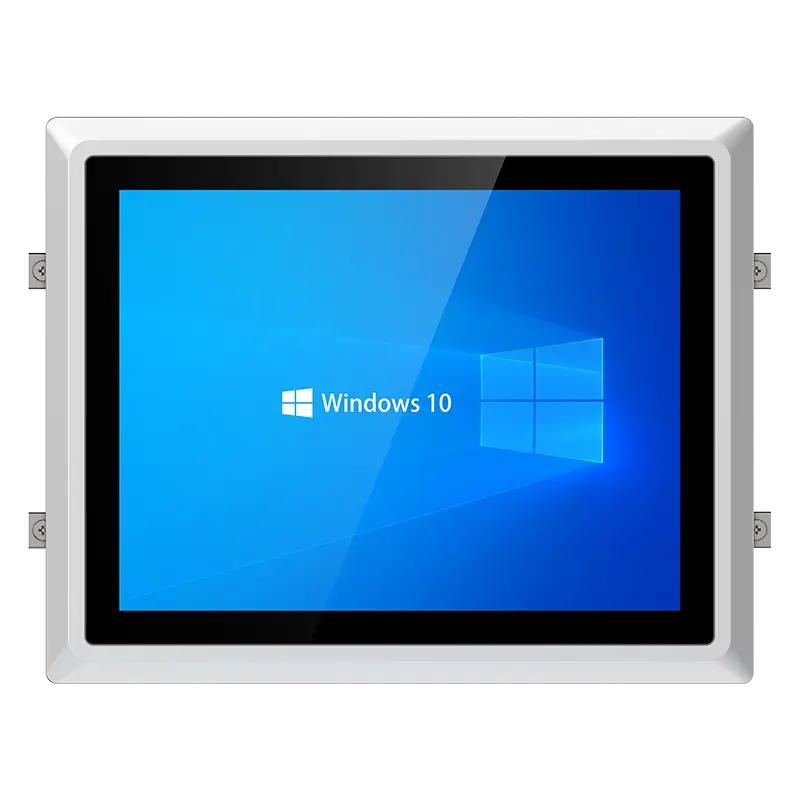

12.1'' Embedded Touchscreen Panel PC
12.1'' Embedded Touchscreen Panel PC
- Brand
- iKOOLCORE
- Core i5-7200U / Customize
- $799.00 In stock
- Core i3-1215U / Customize
- $899.00 In stock
- Overview
- Industrial-grade appearance with a fully enclosed aluminum back cover, embedded panel, sturdy construction, and an overall thickness of about 56.5mm; Widely applicable in industrial fields such as machine vision, highway lane control, mechanical testing equipment, intelligent transportation, smart factories, intelligent power control, CNC equipment manufacturing, environmental monitoring, pharmaceutical equipment, wind power monitoring, tire vulcanization, industrial automation control, and other industrial on-site applications.
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Shipping calculated at checkout.
Quantity
⚠️
Couldn't load pickup availability
-
Shipping
Calculated at checkout Shipping policy
-
Returns
| Processor | Intel low-power embedded CPU (7th / 12th Gen) |
|---|---|
| Chipset | Intel Embedded SoC (7th / 12th Gen) |
| Memory | 8GB / 16GB / 32GB (Dual Memory Slots) |
| Display | 1 × HDMI Interface |
| Touchscreen | Capacitive G+G 10-point multi-touch with <8ms response, ≤2mm accuracy, and virtually unlimited touch lifespan for long-term reliability. |
| I/O Ports |
1 × HDMI / 4 × USB 3.0 / 2 × Gigabit LAN / 2 × COM (expandable to 6) / 1 × Power switch 1 × Combo audio / 1 × 2-pin Phoenix power input / 1 × Remote switch |
| Storage | 1 × M.2 M Key 2280 (supports NVMe PCIe x4 / SATA SSD) or 1 × 2.5" HDD |
| Expansion | 1 × M.2 Key E 2230 slot (supports Wi-Fi + Bluetooth modules) |
| Operating Humidity | 10% – 95% @ 40°C, non-condensing |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Power Input | DC 12V standard input, optional 9–36V wide voltage input |
| Mounting Options | Embedded / Wall-mounted / Desktop stand |

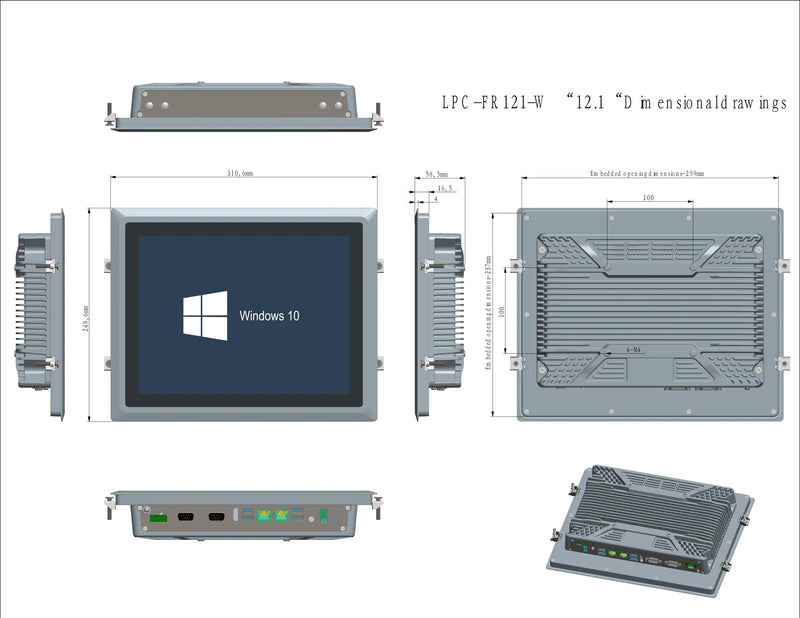

| Dimensions (W × H × D) | TBD mm (bare unit) |
| Weight | Net ≈ 6 kg / Gross ≈ 6.5 kg |
| Operating Systems |
7th Gen: Windows 7 / 10 / 11 / CentOS / Ubuntu / Debian etc. 12th Gen: Windows 11 / CentOS / Ubuntu / Debian etc. |
| Startup Method | Power button operation; supports automatic power-on after power recovery |
